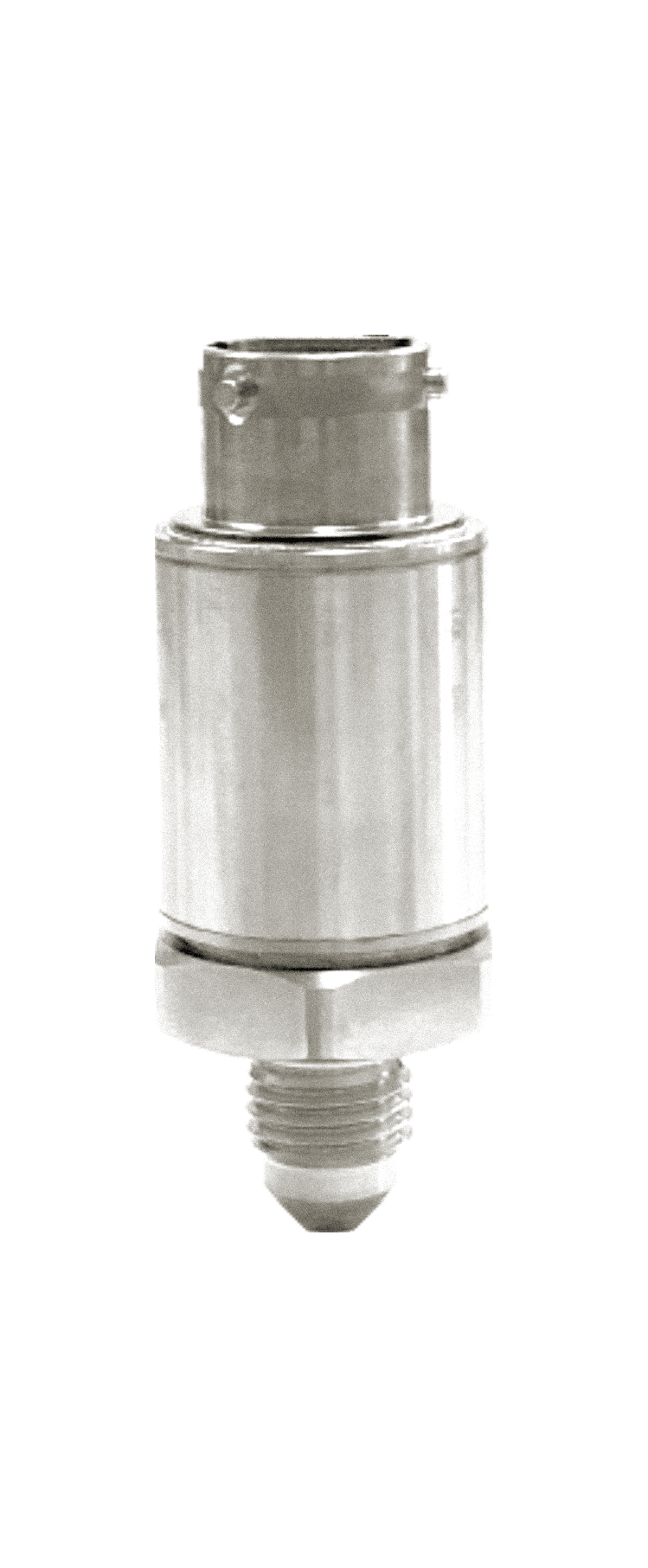

AV40HT is designed to measure pressure measurements under high environment and media temperatures. The Hastelloy C276 wetted parts offer excellent media compatibility with wide range of liquids and gases. Inorganic bonding of the sensing element offers high stability over along periods of time.

* One piece design
* No welded, No oil-filling, No O-ring
* Excellent accuracy
* Excellent long-term stability

* Semiconductor Manufacturing
* Power Generation
* High Pressure Steam
* Chemical Reactor
* Oil & Gas
* Down Holes

Need help?

The AV40HA is a digitally compensated pressure transducer / pressure transmitter that offers high performance over temperature. It has excellent nonlinearity and non-repeatability performance. When it is combined with the ASIC, the AV40HA steps into its own league of high performance pressure sensing at an affordable price. AV40HA offers a choice of wetted materials to handle a wide range of corrosive media.

* ASIC Compensation
* Temperature Performance
* Real Time Thermal Compensation
* Real Time Linearity Correction
* Downturn Capability

* Aerospace
* Analytical Instruments
* Hydraulics
* Labs / Metrology
* Medical
* Military
* Test Stands
* Hydrogen (Consult factory for media compatibility)

Need help?

The AV47SM steel mill package is able to perform in rugged environments as well as meet the high demands of the steel and metal industry. The pressure port design is compatible with the high pressure spikes when the slab is entering and exiting the rolling mill.

* No Silicone Oil, Welds, or Internal O-rings
* High Proof and Burst Pressure Ratings
* Response Time ~ DC 1ms
* Internal Protection Against Pressure Spikes
* Extra Overpressure
* High Accuracy 0.2% as option.
* Wide Range of Temperature Operation.

* Roll Forming
* Stamping
* hydraulic
* Rolling Mill
* Pumps

Need help?

The AV40H2 series is now available for hydrogen pressure sensing applications. Tested to a variety of hydrogen and automotive applications, the AV40H2 series combines the best mechanical design for hydrogen pressure measurement with high performance digital compensation.

* One piece design
* All 316L wetted high stress for optimal compatibility
* No oil-filled cavities leave no chance of containment
* Non-welded diaphragm eliminates leak paths and weak points
* Digitally compensated
* I-GLAZ Technology
* CE EN61326

* PEM Fuel Cells
* Hydrogen Filling Stations
* Back Up Power
* Hydrogen Storage
* Test Stands

Need help?

The AV200 pressure sensor is intended for industrial OEM all Media isolation pressure sensor applications that require the low pressure measurement of liquids and gases. The AV200 offers rugged construction, the latest in MEMs silicon sensor technology, advanced electronics and competitive pricing.

* Low Static and Thermal Errors
* Wide Operating Temperature Range
* Media Isolated
* Ranges from 0-2 PSI to 0-2000 PSI
* CE Approved
* Hastelloy C276 as option
* I2C available (Digital Output)

* Pressure Instrumentation
* Water Level
* Boiler Controls
* Pneumatics
* HVAC/R Systems
* Excellent low pressure application

Need help?

AV209 industrial pressure sensor is a standard and most popular sensor applied in differential pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The housing is filled with oil for pressure transmission. The AV209 sensor is designed for industry application with perfect long term stability.

* Piezoresistive silicon chip employed
* Perfect long term stability
* MEMS Technology
* CE certificate
* Sensor diameter: 19mm

* Pressure Instrumentation
* Water Level
* Boiler Controls
* Pneumatics
* HVAC/R Systems
* Excellent low pressure application

Need help?

The AV300 is Media Isolated sensor is intended for industrial general purpose. OEM applications that require measurement of liquids and gases up to 1000PSI. The AV300 offers rugged construction, latest in MEMs technology, advanced electronics and competitive pricing, fast delivery.

* Low Static and Thermal Errors
* Wide Operating Temperature Range
* Compact Size
* Pressure Ranges from 0-1 PSI to 0-1000 PSI (70 Bar)
* CE Approved

* Pressure Instrumentation
* Water Level
* Boiler Controls
* Pneumatics
* HVAC/R Systems

Need help?

AV310 pressure transmitter is specially designed for small and medium-sized equipment applications such as booster pump, air compressor and pipeline hydraulic system. It is also applicable to a wide range of industrial applications in a variety of structures, outputs and pressure connections, which meets most application requirementsIt has the compact structure which is especially suitable for the installation in the small spaces.

* Compact structure
* Digital circuit processing
* Strong anti-interference and excellent long-term stability
* Small diameter, small size, easy to install and use
* Available for measurement of absolute pressure, gauge pressure and sealed gauge pressure
* Multiple electrical connection options
* SS 316L Diaphragm
* Suitable for mass production

* Air compressor
* Hydraulic and pneumatic equipment
* Refrigeration
* Pipeline system
* High Volume

Need help?

The AV330 is designed to offer Digital and Analog outputs for critical application. The output signals include 0.5~4.5V ratiometric, 0.5~2.5V ratiometric & I²C. The power supply can be as low as 3.3V. The power consumption is very low. It is ideal for remote wireless systems and IIOT applications.

* Temperature digital compensation
* ASIC calibration
* Lower power consumption
* Customize OEM
* Low Static and Thermal Errors
* Wide Operating Temperature Range
* Pressure Ranges from 0-1 PSI to 0-1000 PSI (70 Bar)
* CE Approved

* Water Level
* Pneumatics
* Microcontroller system
* Wireless monitoring
* IIOT application
* Barometric pressure, fluid pressure measurment

Need help?

AV400 Pressure Sensor is design for industrial and offroad applications. It employs p-n junction free MEMS piezo resistive technology that is inorganically bonded for media isolation. Because of one-piece stainless steel structure, AV400 provides reliable operation in harsh environment. It is well suited for OEM machinery, process control, automation, plastic and alloy injection molding machines, hydraulic, etc.

* No welds, no internal O-rings, no fluid fill
* Rugged Design organics exposed to the pressure media
* Features digital compensation
* Temperature correction for high accuracy and stability.

* OEM machinery,
* Process control
* Industrial Automation
* Plastic molding machines
* Alloy injection molding machines
* Hydraulic, etc.

Need help?

The AV500 is constructed to meet precision pressure sensing needs in a variety of applications. With pressure ranges from 0.1 to 200Bar, the AV500 is offered with G1/2”, G1” and 1/2” MNPT ports, electrical connections and output signals.

* Flush Face, No Cavity
* All Stainless Steel Construction
* Wide Operating Temperature Range
* Ranges from 0.1 to 200Bar
* Low Static and Thermal Errors
* Rugged Design Survives Harsh Environments
* Compatible with Wide Range of Liquids
* EMI/RFI Protection

* Pneumatics
* Test Stands
* Pressure Instrumentation
* External tank Level Monitoring
* Boiler Controls
* Dynamometers
* Data Loggers
* P to I Converters
* Food & Beverage Processing

Need help?

AV700 series is media isolated differential pressure transmitters consists of both isolation membrance differential pressure sensor and integrated circuits. It has characteristics of high precision, good stability, high reliability and good sensibility. It has built-in high-performance microprocessor (MCU) which can correct nonlinearity and compensate temperature drift to measure and control for liquid and gas.

* Low Static and Thermal Errors
* Wide Operating Temperature Range
* Compact Size
* CE Approved

* Pressure Instrumentation
* Water Level
* Boiler Controls
* Pneumatics
* HVAC/R Systems
* Filtration

Need help?

AV720 Monocrystalline Silicon Differential Pressure Transmitter uses high stability differential pressure chip.The monocrystalline silicon design achieves internationally leading high-precision, ultra-high overload performance and superior stability. The embedded signal processing module achieves a perfect combination of static pressure and temperature compensation, achieving high accuracy and long-term stability over a wide range of static pressure and temperature changes.

The AV720 Monocrystalline Silicon Differential Pressure Transmitter uses voltage power supply, and convert the measured differential pressure value into 0.5-4.5V Ratiometric, 0-5VDC, 4~20mA or 4~20mA+RS485-MODBUS protocol current signal.

* Imported ultra-high stability differential pressure die
* High accuracy and excellent stability
* Static pressure error within ±0.1%FS/10MPav * Patented double overpressure protection diaphragm design
* Unilateral overpressure limit of up to 40MPa
* High accuracy temperature sensor inside
* Intelligent temperature compensation
* Positive and negative pressure completely symmetrical, no O-ring inside
* All welded integrated structure

* Tank Level Monitoring
* Flow Measurements
* Filter Clogging Monitoring

Need help?

Utilizing a one-piece stainless steel sensing element, the AV800 is only 12mm diameter. It can cover a wide variety of applications that require rugged construction, high cycle life, as well as media compatibility to deliver outstanding and long-term performance. The AV800 is offered with it is designed for rugged and harsh environment.

* High Strength Stainless Steel Construction
* Wide Operating Temperature Range
* Low Static and Thermal Errors
* Unparalleled Price and Performance
* Ultra Small Size

* Extreme Temperature
* Downhole
* Test Stands
* Motorsports
* Inkjet Printers

Need help?

AV901 series submersible level sensors offer the best price performance ratio in the industry by utilizing the latest in MEMs piezo-resistive technology using corrosion resistance 316L stainless steel (Hastelloy C276 optional). From 0-1 to 0-100PSI pressure / level measurement, this submersible pressure transducer is an excellent solution to level monitoring for indoor and outdoor applications.

* No Internal O-ring
* Wide Operating Temperature Range
* Ranges up to 100 PSI
* Low Static and Thermal Errors
* Unparalleled Price and Performace
* Compatible with Wide Range of Liquids
* EMI/RFI Protection
* Rugged Design to Survive in Harsh Environments
* High Strength Stainless Steel Construction

* Earthened & Concrete Dams
* Liquid Level Tanks
* Gasoline & Diesel Fuel Tanks
* Waste Water Canals
* Ground Water Level Dept Measurement

Need help?

The AV1000 industrial temperature transmitter offers accurate temperature measurements with a 4-20mA or 1-5V output signal. Offering a wide selection of process connections, lengths, temperature and connections, the AV1000 can be specified for existing or new applications. Featuring a stainless steel housing, this temperature can be packaged with IP-66 to IP-68.

* Compact Size
* Rugged Design
* Wide Choice of Process Connectors
* Stainless Steel 316L Wetted Parts
* High Media Process Capabilities (500 Bar)
* High Shock and Vibe

* Mud and Frack Pumps
* Gas Flow Temp.
* Well Heads
* Gas Compressors & Turbines
* Hydraulic Oil Temp.
* Wind Turbines

Need help?

The AV2000 is Media Isolated sensor is intended for industrial general purpose. OEM applications that require measurement of liquids and gases up to 3000PSI. The AV2000 offers rugged construction, latest in MEMs technology, advanced electronics and competitive pricing, fast delivery.

* Low Static and Thermal Errors
* Wide Operating Temperature Range
* Compact Size
* Pressure Ranges from 0-5 to 0-3000PSI
* CE Approved

* Pressure Instrumentation
* Water Level
* Boiler Controls
* Pneumatics
* HVAC/R Systems

Need help?

This digital remote-transmission pressure gauge has two types outlet signal: 4-20mA remote signal, or RS485 signal based on the standard MODBUS RTU communication protocol.
This series of remote gauge uses four digit display, showing real-time pressure. while, the pressure signal can be remoted, transmission distance more than five hundred meters.
This series of digital remote transmission pressure gauge with built-in pressure sensor, has function for users to change the pressure units, zero & error clearing, correction filter constant etc.. It has followed features: 304 stainless steel shell and connector, waterproof cable outlet, waterproof grade IP65, with a very wide range of medium applicability.

* 4 digital showing the pressure in real time
* Two types signal available: 4-20mA remote signal or RS485 signal
* Good stability, anti electromagnetic interence design
* Varied pressure units available, erro clearing and zero clearing
* Wide operation temperature range, wide application areas

* Automation equipment
* Variable frequency water supply
* Laboratory equipment
* pneumatic and hydraulic system

Need help?
