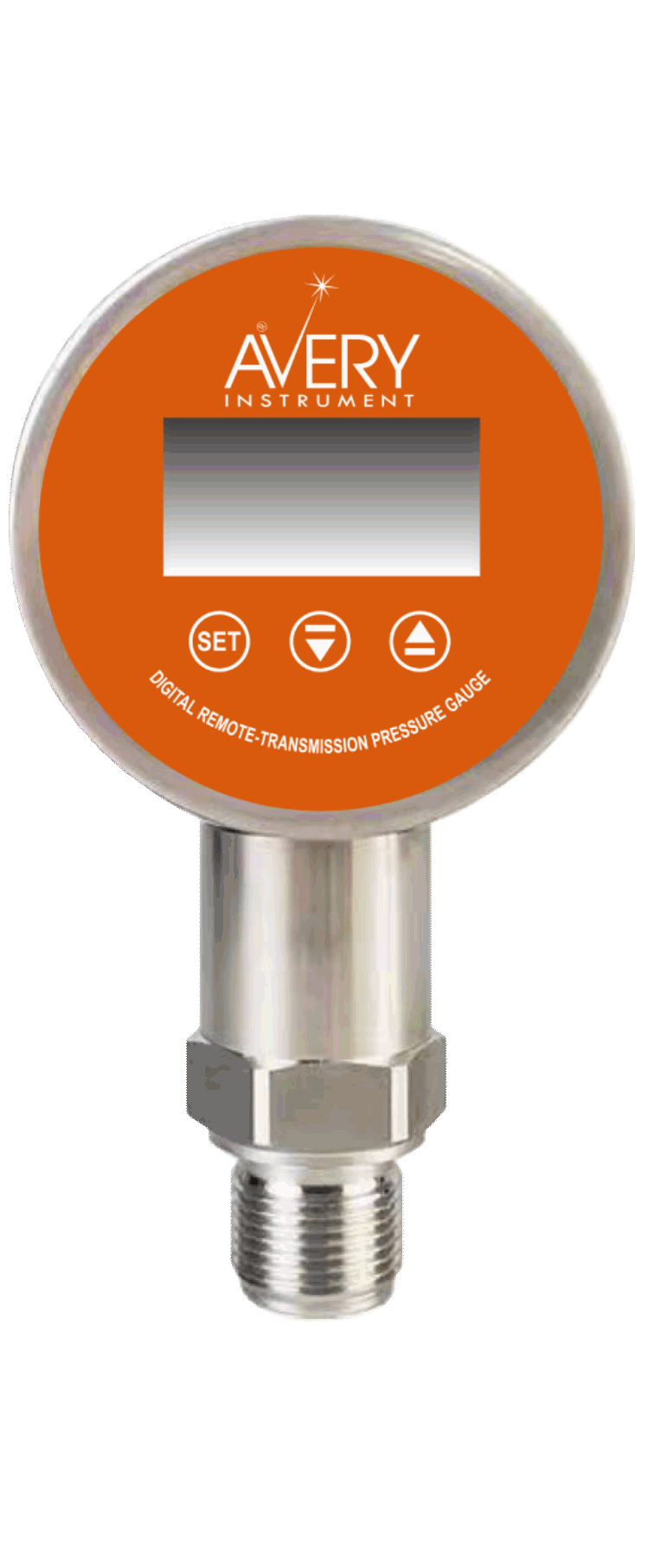

Digital Pressure Gauge

AV40PG

Features

» 4 digital showing the pressure in real time
» Two types signal available: 4-20mA remote signal or RS485 signal
» Good stability, anti electromagnetic interence design
» Varied pressure units available, erro clearing and zero clearing
» Wide operation temperature range, wide application areas

Applications

» Automation equipment
» Variable frequency water supply
» Laboratory equipment
» Pneumatic and Hydraulic systems

Overview

This digital remote-transmission pressure gauge has two types outlet signal: 4-20mA remote signal, or RS485 signal based on the standard MODBUS RTU communication protocol.

This series of remote gauge uses four digit display, showing real-time pressure. while, the pressure signal can be remoted, transmission distance more than five hundred meters.

This series of digital remote transmission pressure gauge with built-in pressure sensor, has function for users to change the pressure units, zero & error clearing, correction filter constant etc.. It has followed features: 304 stainless steel shell and connector, waterproof cable outlet, waterproof grade IP65, with a very wide range of medium applicability.

SPECIFICATION:

Gauge Pressure Range	0-2Bar...10...16...50... 100...250...400...600Bar
Absolute Pressure Range	0-5kPa...10...20... 100...1000kPa
Overload Pressure	≤100Bar 200%; >100Bar 150%;
Display	LCD (4-20mA) LED(RS485)
Pressure Type	Gauge, Sealed, Absolute
Response Time	≤1ms ( up to 90% FS)
Accuracy	0.25%FS
Stability	Typical: ±0.5%FS/year
Zero Temperature Drift	Typical: ±0.02%FS/℃, Max ±0.05%FS/℃

SPECIFICATION:

Sensitivity Tem Drift	Typical: ±0.02%FS/℃, Max ±0.05%FS/℃
Operating Temperature	-20 ~ 80℃
Compensation Temperature	-10 ~ 70℃
Storage Temperature	-40 ~ 100℃
Output Signal	4-20mA or RS485
Electric Protection	Reverse voltage protection, anti-electromagintic interference
Protection Level	IP 65
Measurement Medium	Gas, liquid
Pressure Connector	M20*1.5 (other are customized)
Shell	304 Stainless Steel

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV40PGP600A1L4S

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

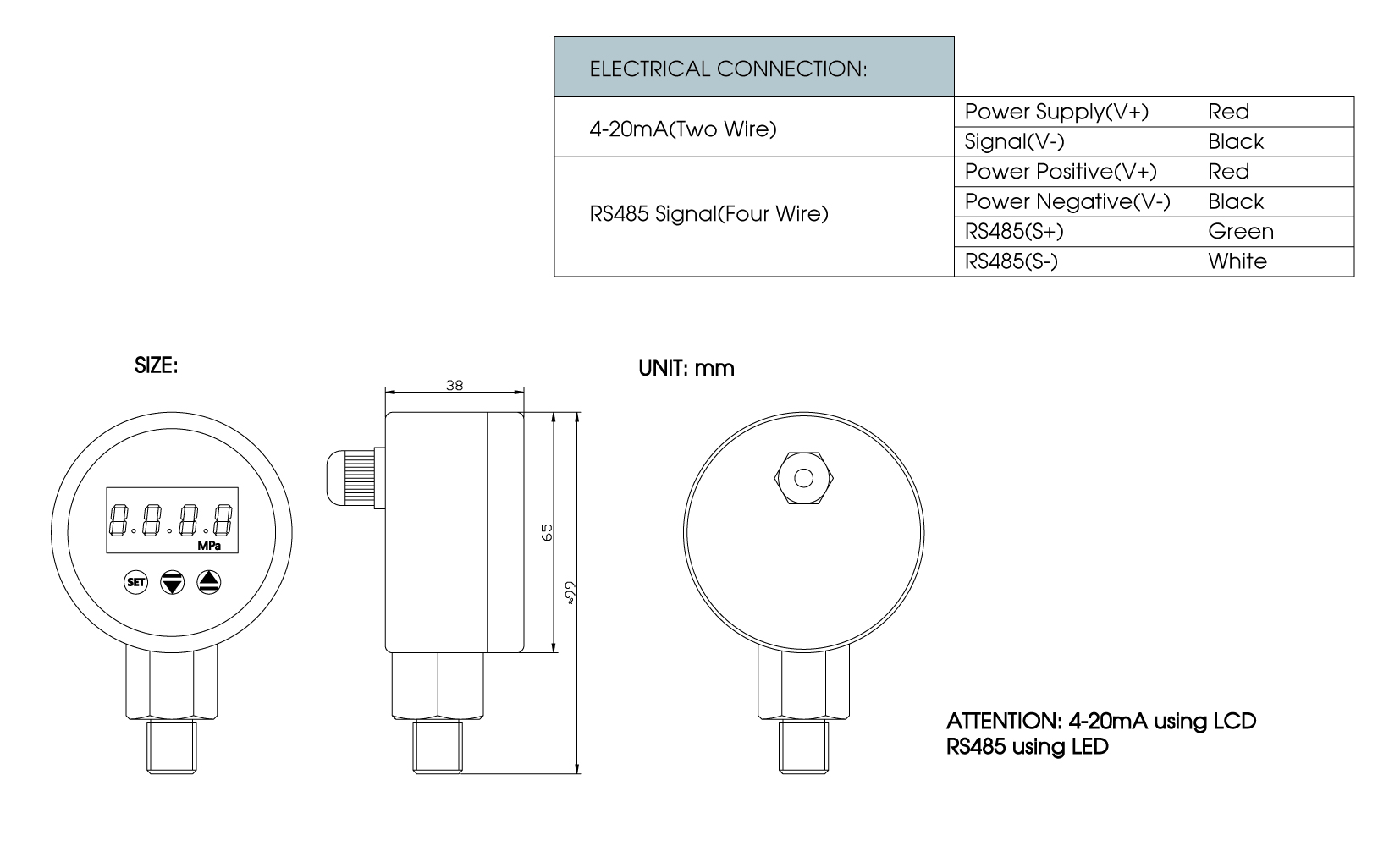

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
