WET-WET Differential Pressure Transmitter

AV700

Benefits

» Low Static and Thermal Errors
» Wide Operating Temperature Range
» Compact Size
» CE Approved

Applications

» Pressure Instrumentation
» Water Level
» Boiler Controls
» Pneumatics
» HVAC/R Systems
» Filtration

Overview

AV700 series is media isolated differential pressure transmitters consists of both isolation membrance differential pressure sensor and integrated circuits. It has characteristics of high precision, good stability, high reliability and good sensibility. It has built-in high-performance microprocessor (MCU) which can correct nonlinearity and compensate temperature drift to measure and control for liquid and gas.

Performance @ 25℃ (77℉)

Accuracy*	<±0.4% typ.
Stability(1 year)	<±0.25% typ.
Pressure Range	Up to 300 PSI
Common Line Pressure	500PSI
Burst Pressure	3X Full Scale
Pressure Cycles	4 million cycles
Output	0-5V	1-5V	4-20mA	0.5-4.5VDC (ratiometric)
Excitation	10-28VDC			5VDC typ.
Zero Offset	<±0.5% of FS
Span Tolerance	<±1% of FS
Reverse Polarity Protection	Yes
* Accuracy includes non-linearity, hysteresis & non-repeatability

Environmental Data

Temperature
Operating	-40 to 105℃
Storage	-40 to 125℃
Thermal Limits
Compensated Range	-0℃ to 70℃ (32 to 158℉)
TC Zero	<±1.5% FS
TC Span	<±1.5% FS
Other
Shock	100 (11mS)
Vibration	20g (20-5000HZ)
EMI/RFI Protection	Yes
Rating	IP-65

Physical Description

Wetted Material	316L-SS
Weight	150g
Electrical Connection	Packard

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV700A000DFL0C000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

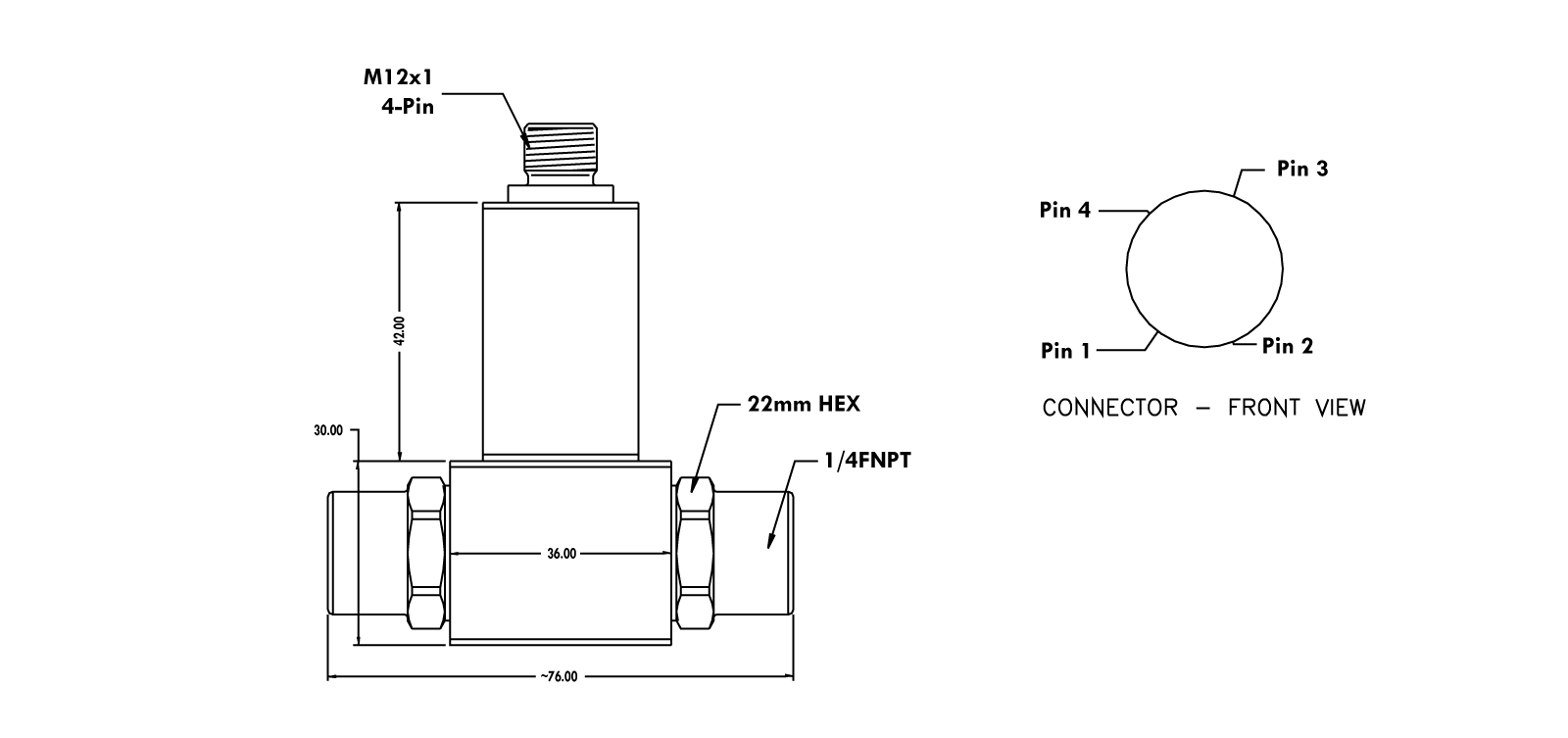

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
