Low Power Wireless IIOT digital output

AV330

Benefits

» Temperature digital compensation
» ASIC calibration
» Lower power consumption
» Customize OEM
» Low Static and Thermal Errors
» Wide Operating Temperature Range
» Pressure Ranges from 0-1 PSI to 0-1000PSI
» CE Approved

Applications

» Water Level
» Pneumatics
» Microcontroller system
» Wireless monitoring
» IIOT application
» Barometric pressure, fluid pressure measurment

Overview

The AV330 is designed to offer Digital and Analog outputs for critical application. The output signals include 0.5~4.5V ratiometric, 0.5~2.5V ratiometric & I²C. The power supply can be as low as 3.3V. The power consumption is very low. It is ideal for remote wireless systems and IIOT applications.

Performance @ 25℃ (77℉)

Accuracy*	<±0.25% typ.
Stability(1 year)	<±0.2% typ.
Over range Protection	2X rated (4X optional)
Pressure Type	Gauge, Sealed, Absolute
Response Time	≤1ms ( up to 90% FS)
Output	I2C	0.25-2.5V Ratiometric	0.5-4.5V Ratiometric
Excitation	3.3VDC typ.		5VDC typ.
Zero Offset	<±1% of FS
Span Tolerance	<±1.5% of FS
* Accuracy includes: Non-linearity, Hysteresis and Non-repeatability

Environmental Data

Temperature
Operating	-40 to 105℃
Storage	-40 to 125℃
IP rating	IP65
Thermal Limits
Compensated Range	0 to 70℃
TC Zero	<±1.5% of FS
TC Span	<±1.5% of FS
Other
Shock	100(11mS)
Vibration	20g (20 to 5000HZ)

Physical Description

Wetted Material	316L
Electrical Connection	Packard, Din 43650C, M12, Cable etc.
Body Material	Stainless Steel 304L
Weight	95g
Reverse Polarity Protection	Yes

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV330A000A4L0C000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

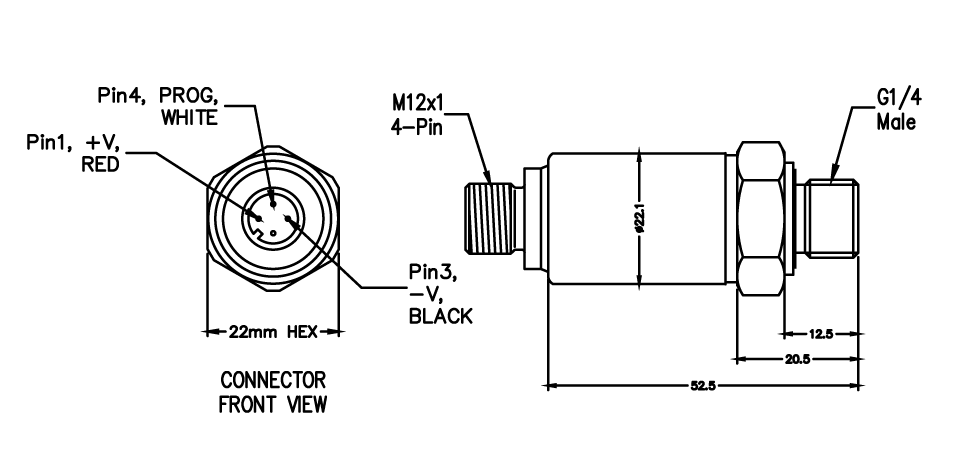

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
