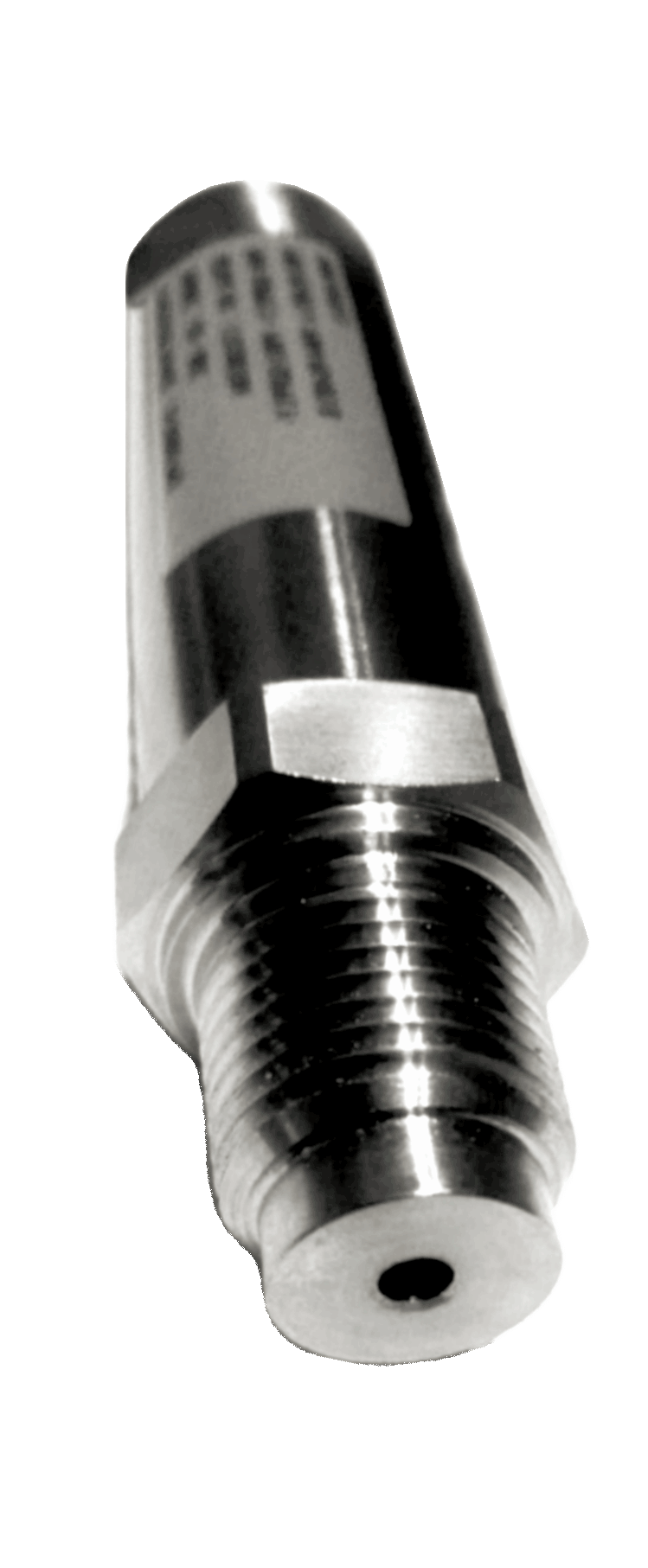

Digital Industrial Pressure and Temperature Transmitter with RS485 bus

AV2000


Benefits

» Low Static and Thermal Errors
» Wide Operating Temperature Range
» Compact Size
» Pressure Ranges from 0-5 to 0-3000PSI
» CE Approved

Applications

» Pressure Instrumentation
» Water Level
» Boiler Controls
» Pneumatics
» HVAC/R Systems

Overview

The AV2000 is Media Isolated sensor is intended for industrial general purpose. OEM applications that require measurement of liquids and gases up to 3000PSI. The AV2000 offers rugged construction, latest in MEMs technology, advanced electronics and competitive pricing, fast delivery.

Performance @ 25℃ (77℉)

Accuracy* <±0.25% BFSL, Max
Stability(1 year) <±0.2% typ.
Burst Pressure 5X rated or 10000PSI (whichever is less)
Pressure Cycles >1 Million at Full Pressure
Over range Protection 2X rated (4X optional)
Pressure Type Gauge, Sealed, Absolute
Response Time ≤1ms ( up to 90% FS)
Output Pressure and Temperature dual outputs with RS485 Bus
Excitation 12-24VDC
* Accuracy includes non-linearity, hysteresis & non-repeatability

Environmental Data

Temperature
Operating -20 to 80℃
Storage -40 to 120℃
IP rating IP65
Thermal Limits
Compensated Range -0℃ to 70℃
TC Zero <±1.5% of FS
TC Span <±1.5% of FS
Other
Shock 100 (11mS)
Vibration 20g (20-5000HZ)

Physical Description

Wetted Material 316L-SS
Electrical Connection M12x1, 5-Pin
Body Material Stainless Steel
Weight 95g
Reverse Polarity Protection Yes

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Contact us

Ordering Method
For Example:-

AV2000P03KGXLMZ101

ORDERING INFORMATION

Click the button      and find the AVERY Model number
Ordering Information for AV2000

DIMENSIONAL DATA


DOWNLOAD DATASHEET


Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
