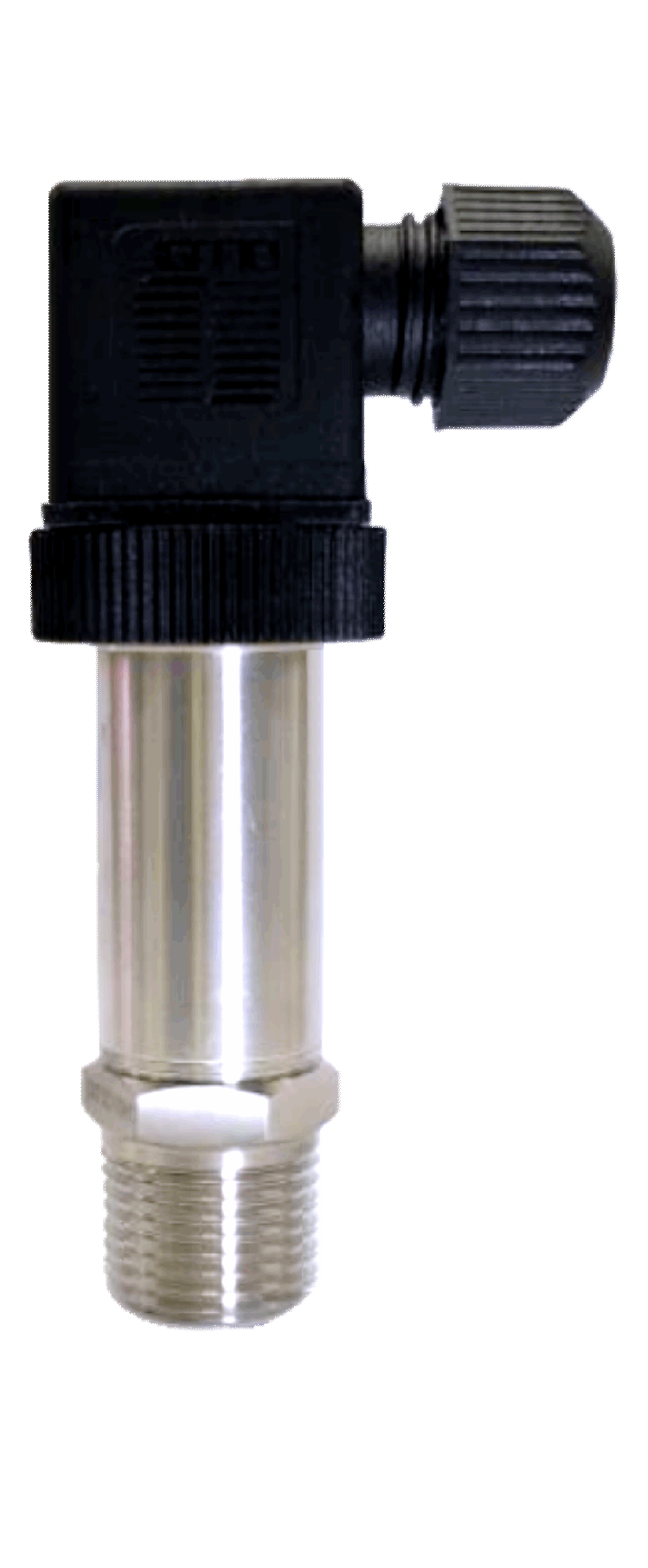

OEM Industrial Flush Mount Pressure Transducer and Transmitters

AV500

Benefits

» Flush Face, No Cavity
» All Stainless Steel Construction
» Wide Operating Temperature Range
» Ranges from 0.1 to 200Bar
» Low Static and Thermal Errors
» Rugged Design Survives Harsh Environments
» Compatible with Wide Range of Liquids
» EMI/RFI Protection

Applications

» Pneumatics
» Test Stands
» Pressure Instrumentation
» External tank Level Monitoring
» Boiler Controls
» Dynamometers
» Data Loggers
» P to I Converters
» Food & Beverage Processing

Overview

The AV500 is constructed to meet precision pressure sensing needs in a variety of applications. With pressure ranges from 0.1 to 200Bar, the AV500 is offered with G1/2", G1" and 1/2" MNPT ports, electrical connections and output signals.

Performance @ 25℃ (77℉)

Accuracy*	<±0.25% BFSL, typ.
Stability(1 year)	<±0.25% FS, typ.
Over range Protection	2X Rated Pressure
Burst Pressure	5X Rated Pressure
Pressure Cycles	>100 Million
Output	0-5V	4-20mA
Excitation	12-32VDC
Output Impedance	>5kΩ
Zero Offset	<±0.25% of FS
Span Tolerance	<±0.5% of FS
Reverse Polarity Protection	Yes
* Accuracy includes: Non-linearity, Hysteresis and Non-repeatability

Environmental Data

Temperature
Operating	-40 to 85℃
Storage	-40 to 125℃
Thermal Limits
Compensated Range	0 to 70℃
TC Zero	<±1.5% of FS
TC Span	<±1.5% of FS
Other
Shock	100G, 11 msec, 1/2 sine
Vibration	10G peak, 20 to 2000Hz.
EMI/RFI Protection	Yes
Rating	IP-65 (housing only)

Physical Description

Wetted Material	316L, Hastelloy C276 (optional)
Electrical Connection	Din 43650A, M12, Cable etc.

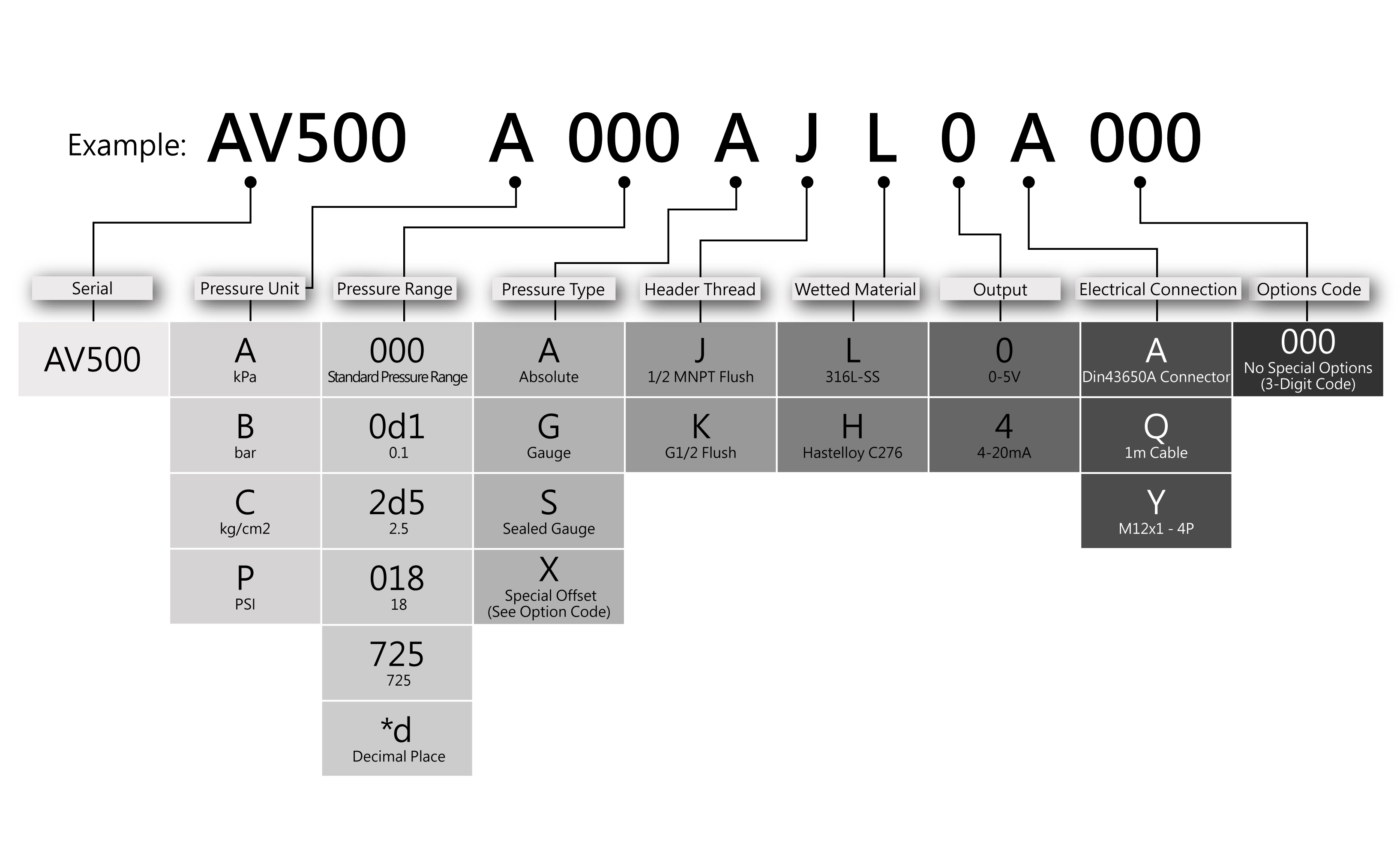

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV500A000AJL0A000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
