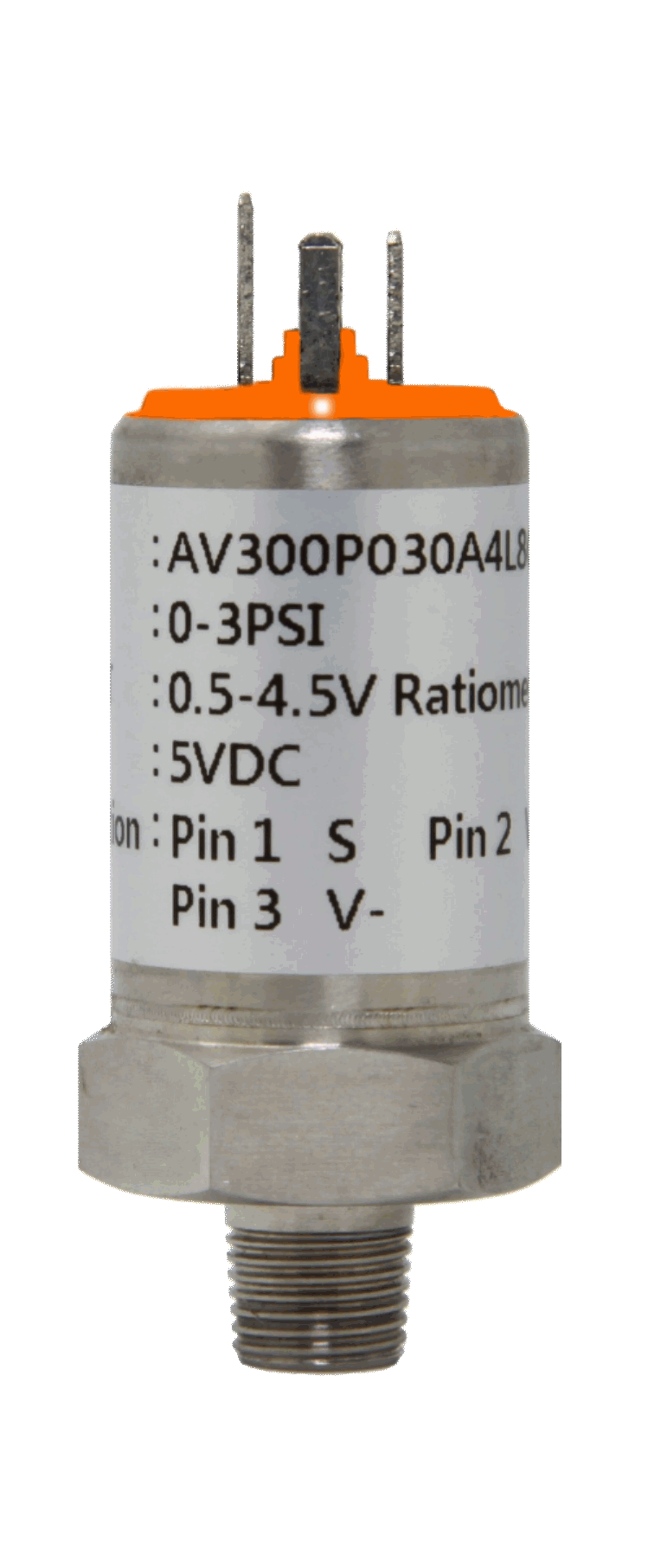

OEM Industrial MEMs Pressure Sensor & Transmitter

AV300

Benefits

» Low Static and Thermal Errors
» Wide Operating Temperature Range
» Compact Size
» Pressure Ranges from 0-1 PSI to 0-1000PSI (70 Bar)
» CE Approved

Applications

» Pressure Instrumentation
» Water Level
» Boiler Controls
» Pneumatics
» HVAC/R Systems

Overview

The AV300 is Media Isolated sensor is intended for industrial general purpose. OEM applications that require measurement of liquids and gases up to 1000PSI. The AV300 offers rugged construction, latest in MEMs technology, advanced electronics and competitive pricing, fast delivery.

Performance @ 25℃ (77℉)

Accuracy*	<±0.25% typ.
Stability(1 year)	<±0.2% typ.
Over range Protection	2X rated (4X optional)
Pressure Type	Gauge, Sealed, Absolute
Response Time	≤1ms ( up to 90% FS)
Output	0-5V	4-20mA	0.5-4.5V Ratiometric	10mV/V**
Excitation	10-30V		5VDC typ.
Zero Offset	<±0.75%			<±2mV
Span Tolerance	<±0.75%			<±2mV
* Accuracy includes: Non-linearity, Hysteresis and Non-repeatability
** 10VDC, Maximun

Environmental Data

Temperature
Media	-40 to 125℃ (-40 to 257℉)
Operating	-40 to 105℃ (-40 to 221℉)
Storage	-40 to 125℃ (-40 to 257℉)
IP rating	IP65
Thermal Limits
Compensated Range	0℃ to 70℃
TC Zero	<±1.5% of FS
TC Span	<±1.5% of FS
Other
Shock	100(11mS)
Vibration	20g (20 to 5000HZ)

Physical Description

Wetted Material	316L
Electrical Connection	Packard, Din 43650C, M12, Cable etc.
Body Material	Stainless Steel
Weight	95g
Reverse Polarity Protection	Yes

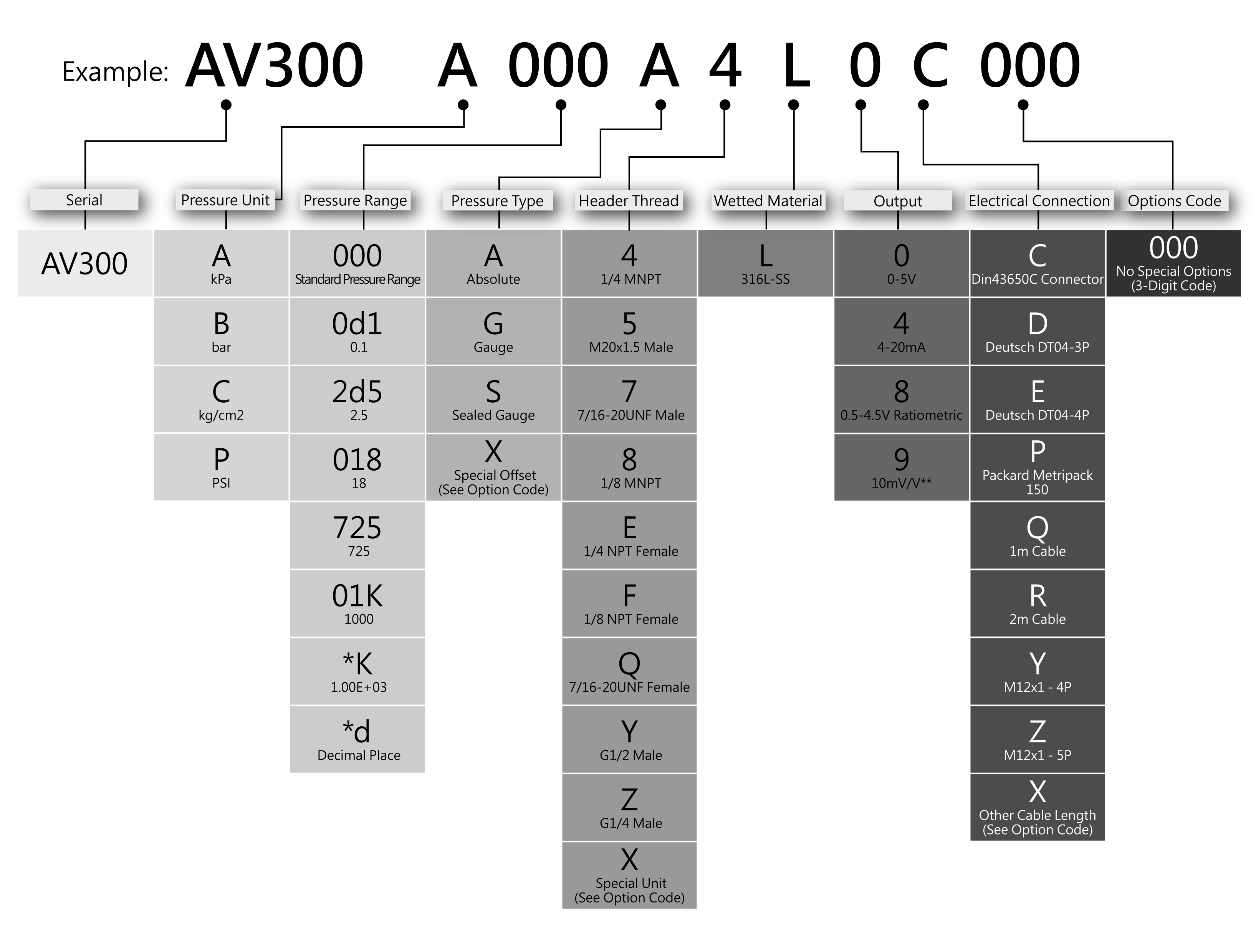

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV300A000A4L0C000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

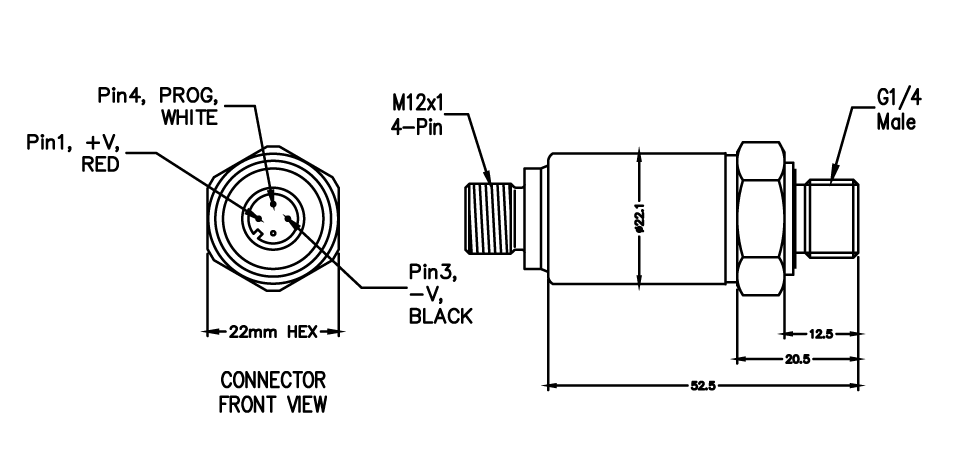

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
