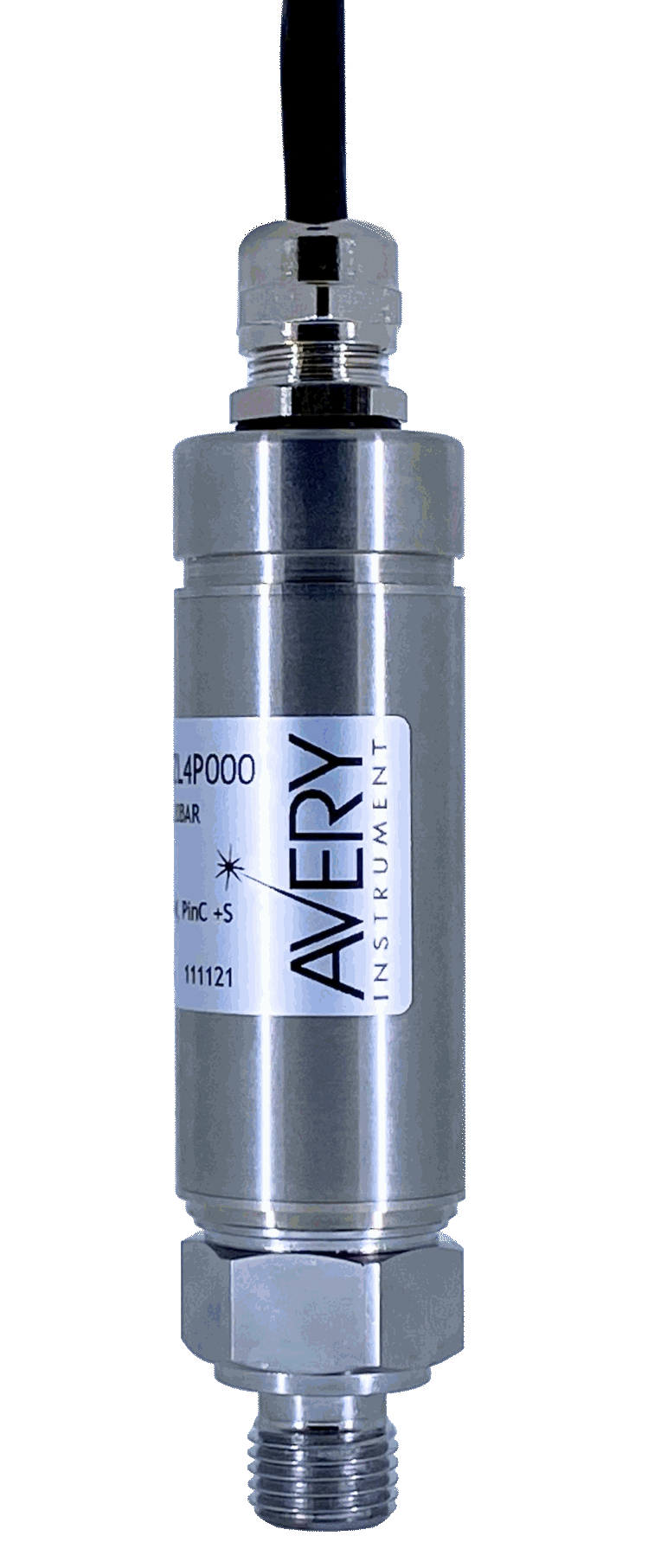

Monocrystalline Silicon Differential Pressure Transmitter

AV47SM

Benefits

» No Silicone Oil, Welds, or Internal O-rings
» High Proof and Burst Pressure Ratings
» Response Time ~ DC 1ms
» Internal Protection Against Pressure Spikes
» Extra Overpressure
» High Accuracy 0.2% as option.
» Wide Range of Temperature Operation.

Applications

» Roll Forming
» Stamping
» hydraulic
» Rolling Mill
» Pumps

Overview

The AV47SM steel mill package is able to perform in rugged environments as well as meet the high demands of the steel and metal industry. The pressure port design is compatible with the high pressure spikes when the slab is entering and exiting the rolling mill.

Performance @ 25℃ (77℉)

Accuracy*	<±0.25% BFSL (±0.1% Optional)
Stability(1 year)	<±0.25% FS, typical
Over range Protection	5X Rated Pressure
Burst Pressure	10X or 20,000PSI (whichever is less)
Pressure Cycles	>100 Million
Output	4-20mA	1-5VDC, 1-6VDC
Excitation	10-28VDC	10-28VDC
Zero Offset	<±1% of FS	<±1% of FS
Span Tolerance	<±1.5% of FS	<±1.5% of FS
* Accuracy includes non-linearity, hysteresis & non-repeatability

Environmental Data

Temperature
Operating	-40 to 100℃ (-40 to 185℉)
Storage	-40 to 125℃ (-40 to 250℉)
Thermal Limits
Compensated Range	20 to 90℃ (70 to 190℉)
TC Zero	<±1% of FS
TC Span	<±1% of FS
Other
Shock	100G, 11msec, 1/2 sine
Vibration	20G peak, 20 to 2400HZ
EMI/RFI Protection	Yes
Rating	IP-69

Physical Description

Wetted Material	17-4PH
Electrical Connection	Cable

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV47SMB01KS4P4B000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
