High Temperature Pressure Sensor

AV1000

Benefits

» Compact Size
» Rugged Design
» Wide Choice of Process Connectors
» Stainless Steel 316L Wetted Parts
» High Media Process Capabilities (500 Bar)
» High Shock and Vibe<

Applications

» Mud and Frack Pumps
» Gas Flow Temp.
» Well Heads
» Gas Compressors & Turbines
» Hydraulic Oil Temp.
» Wind Turbines

Overview

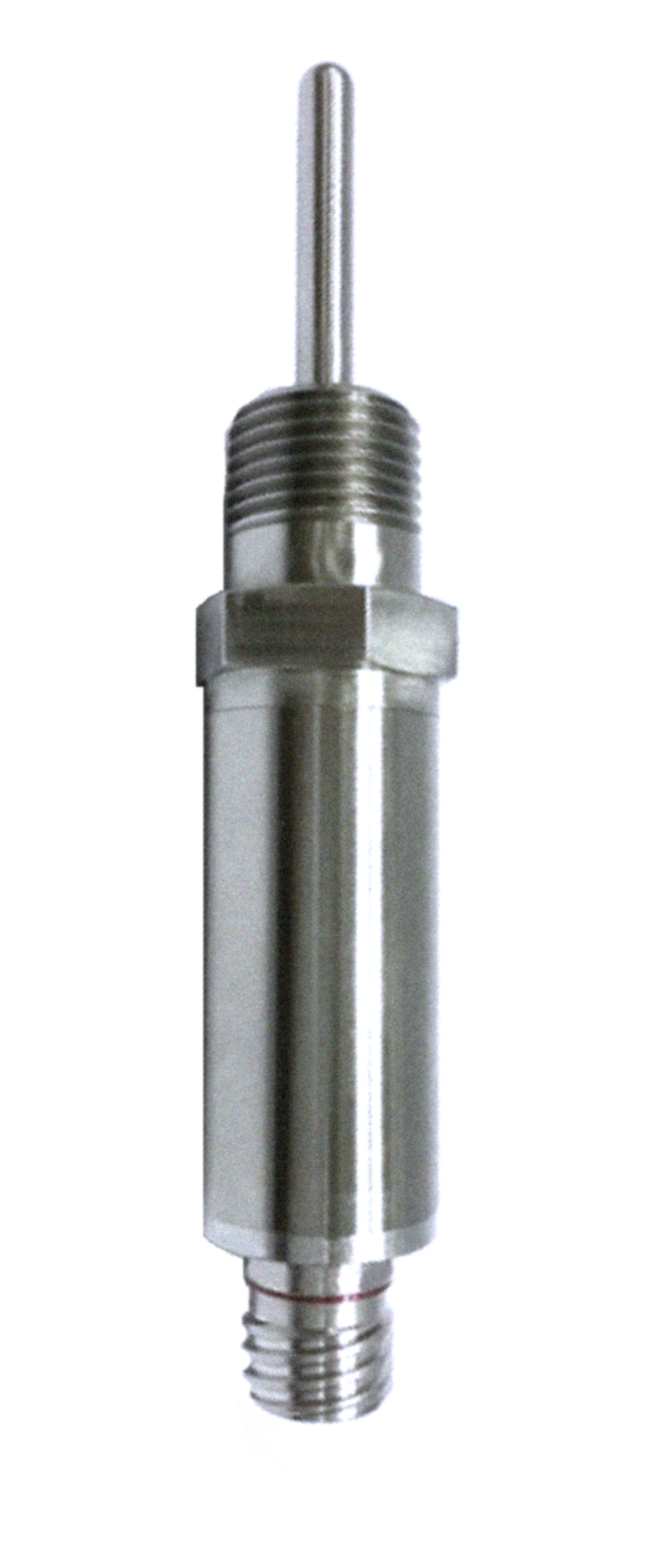

The AV1000 industrial temperature transmitter offers accurate temperature measurements with a 4-20mA or 1-5V output signal. Offering a wide selection of process connections, lengths, temperature and connections, the AV1000 can be specified for existing or new applications. Featuring a stainless steel housing, this temperature can be packaged with IP-66 to IP-68.

Environmental Data

Shock	100G, 11 msec, 1/2 sine
Vibration	10G peak, 20 to 2000 Hz.

Electrical Data

Output	4-20mA
Excitation	22 to 28VDC
Output Impedance	>10k Ohms
Zero Offset	±0.5%
Span Tolerance	±0.5%
Response Time	<1 second
Reverse Polarity	Yes

Performance @ 25℃ (77℉)

Accuracy*	±0.25℃
Stability (1 year)	0.2%FS, typical

Temperature

Ambient Temperature	-40 to 85℃
Storage Temperature	-50 to 120℃
Liquid or Gas Temperature	-40 to 200℃
IP Rating	IP-66, min

Maximum Pressure

<2 inch Probe	500 Bar (7,250 PSI)
>2 inch Probe	150 Bar (2,175 PSI)

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV10004A14SL

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
