High Accuracy Stainless Steel Media Isolated Pressure Sensor

AV40HA

Benefits

» ASIC Compensation
» Temperature Performance
» Real Time Thermal Compensation
» Real Time Linearity Correction
» Downturn Capability

Applications

» Aerospace
» Analytical Instruments
» Hydraulics
» Labs / Metrology
» Medical
» Military
» Test Stands
» Hydrogen (Consult factory for media compatibility)

Overview

The AV40HA is a digitally compensated pressure transducer / pressure transmitter that offers high performance over temperature. It has excellent nonlinearity and non-repeatability performance.
When it is combined with the ASIC, the AV40HA steps into its own league of high performance pressure sensing at an affordable price. AV40HA offers a choice of wetted materials to handle a wide range of corrosive media.

Performance @ 25℃ (77℉)

Accuracy*	<±0.1% BFSL*, typ.
Stability(1 year)	<±0.1% FS, typ.
Pressure Range	0-5 to 20,000PSI
Proof Pressure	2X Rated Pressure, standard**
Burst Pressure	5X or, 50,000PSI, whichever is less
Pressure Cycles	100 million
Output	4-20mA	0-5V	0-10V
Excitation	10-28VDC		15-30VDC
Zero Offset	<±0.5% FS
Span	<±0.5% FS
* Accuracy includes non-linearity, hysteresis & non-repeatability ** For higher proof pressures, contact factory

Environmental Data

Temperature
Operating	-40 to 85℃ (-40 to 185℉)
Storage	-50 to 125℃ (-58 to 250℉)
Thermal Limits
Compensated Range	0 to 70℃
TC Zero	<±0.5% FS
TC Span	<±0.5% FS
Other
Shock	100G, 11msec, 1/2 sine
Vibration	10G peak, 20 to 2000hz
EMI/RFI Protection	Yes
Rating	IP66

Physical Description

Wetted Material	316L, 17-4PH, 718 Inconel
Weight	60g
Electrical Connection	Bendix, Din43650, Cable
Reverse Polarity Protection	Yes

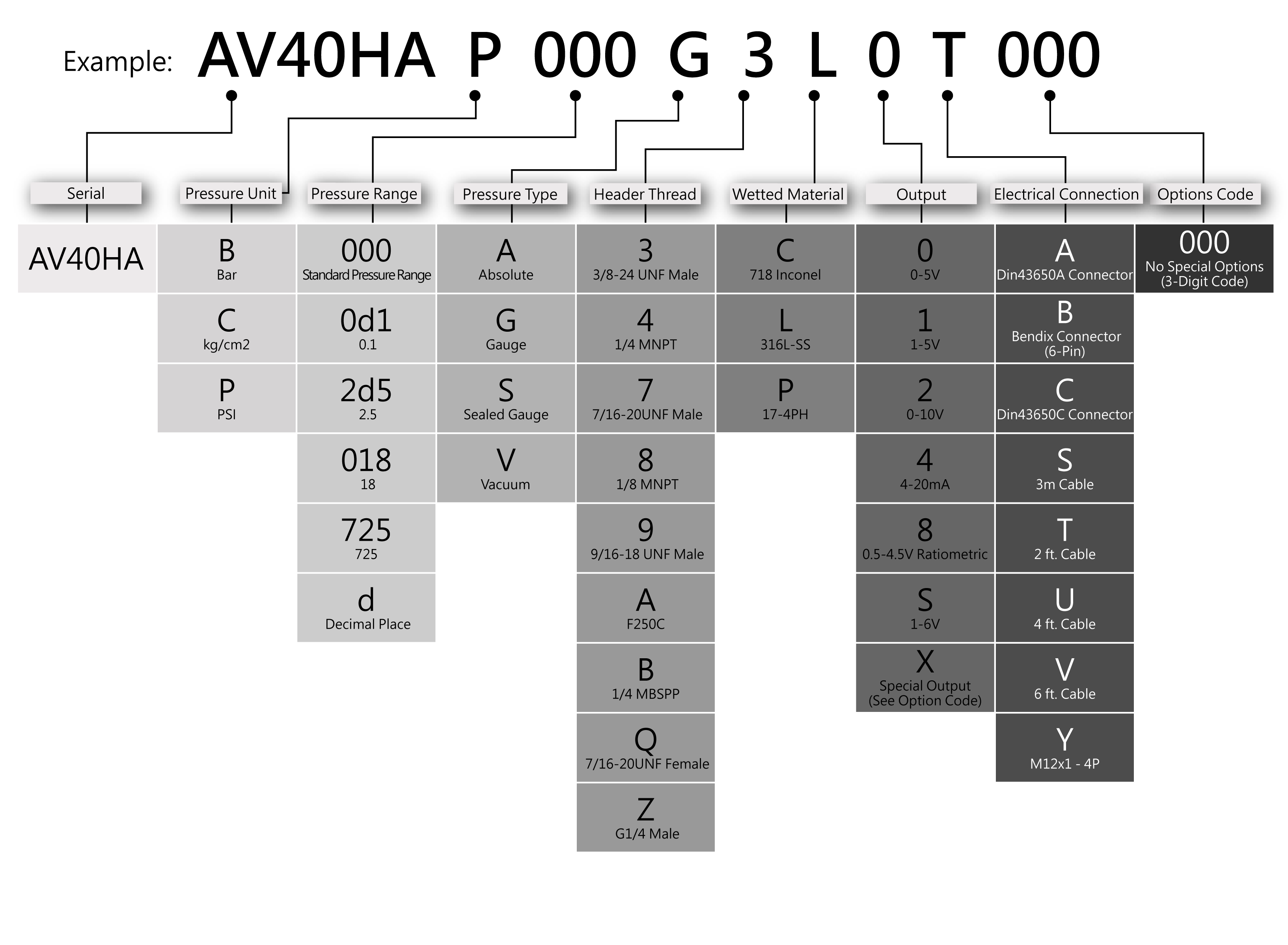

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV40HAP000G3L0T000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
