Miniature Compact High Temperature / High Pressure Sensor

AV800

Benefits

» High Strength Stainless Steel Construction
» Wide Operating Temperature Range
» Low Static and Thermal Errors
» Unparalleled Price and Performance
» Ultra Small Size

Applications

» Extreme Temperature
» Downhole
» Test Stands
» Motorsports
» Inkjet Printers

Overview

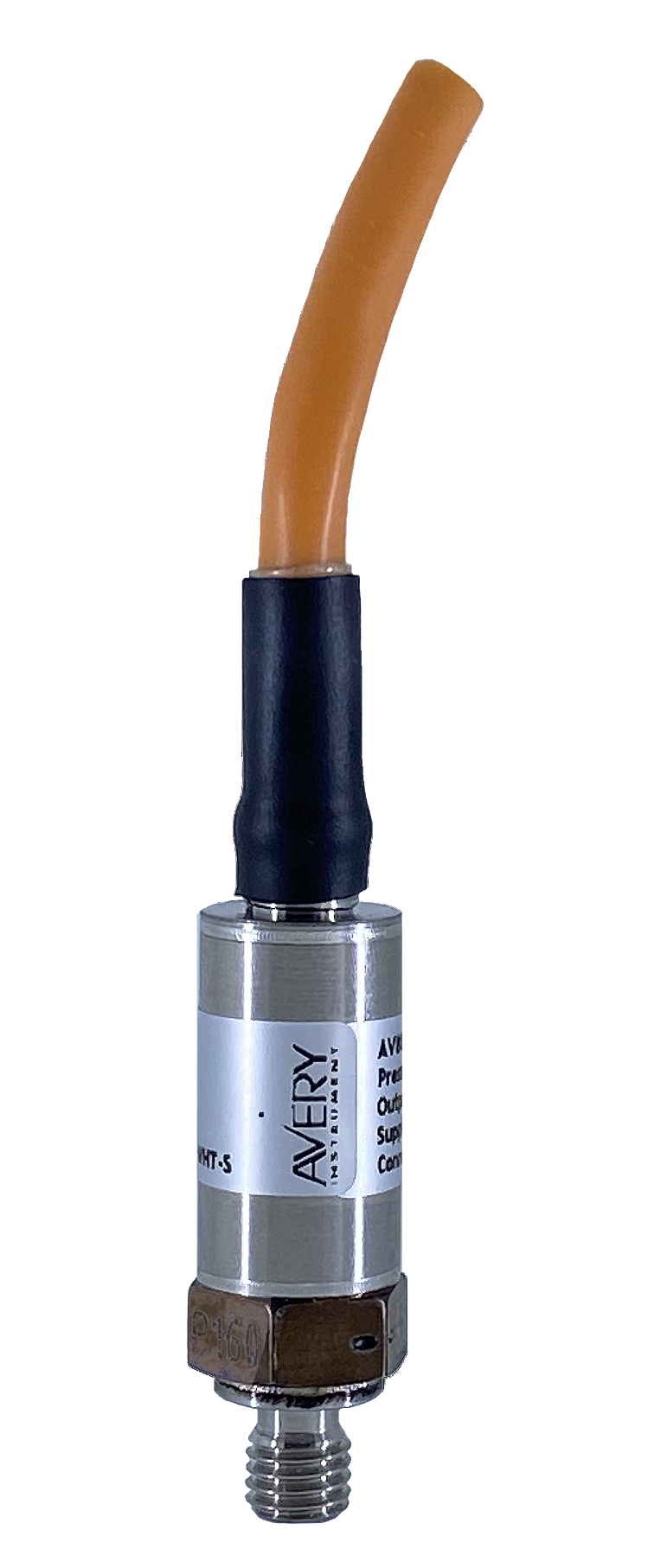

Utilizing a one-piece stainless steel sensing element, the AV800 is only 12mm diameter. It can cover a wide variety of applications that require rugged construction, high cycle life, as well as media compatibility to deliver outstanding and long-term performance. The AV800 is offered with it is designed for rugged and harsh environment.

Performance @ 25℃ (77℉)

Accuracy*	<±0.15% BFSL, typ.
Stability(1 year)	<±0.1% of FS, typ.
Over range Protection	2X Rated Pressure
Burst Pressure	5X or 10,000PSI (whichever is less)
Pressure Cycles	>100 Million
Output	5mV/V
Excitation	5VDC typ.
Zero Offset	<±1mV
Span Tolerance	<±2mV
* Accuracy includes non-linearity, hysteresis & non-repeatability Millivolt output is 10VDC excitation Maximum

Environmental Data

Temperature
Operating	-55 to 130℃
Storage	-60 to 140℃
Thermal Limits
Compensated Range	0 to 70℃
TC Zero	<±1.5% of FS
TC Span	<±1.5% of FS
Other
Shock	100G, 11 msec, 1/2 sine
Vibration	10G peak, 20 to 2000 Hz.
Rating	IP-65

Physical Description

Wetted Material	17-4PH
Electrical Connection	Cable
Reverse Polarity Protection	Yes

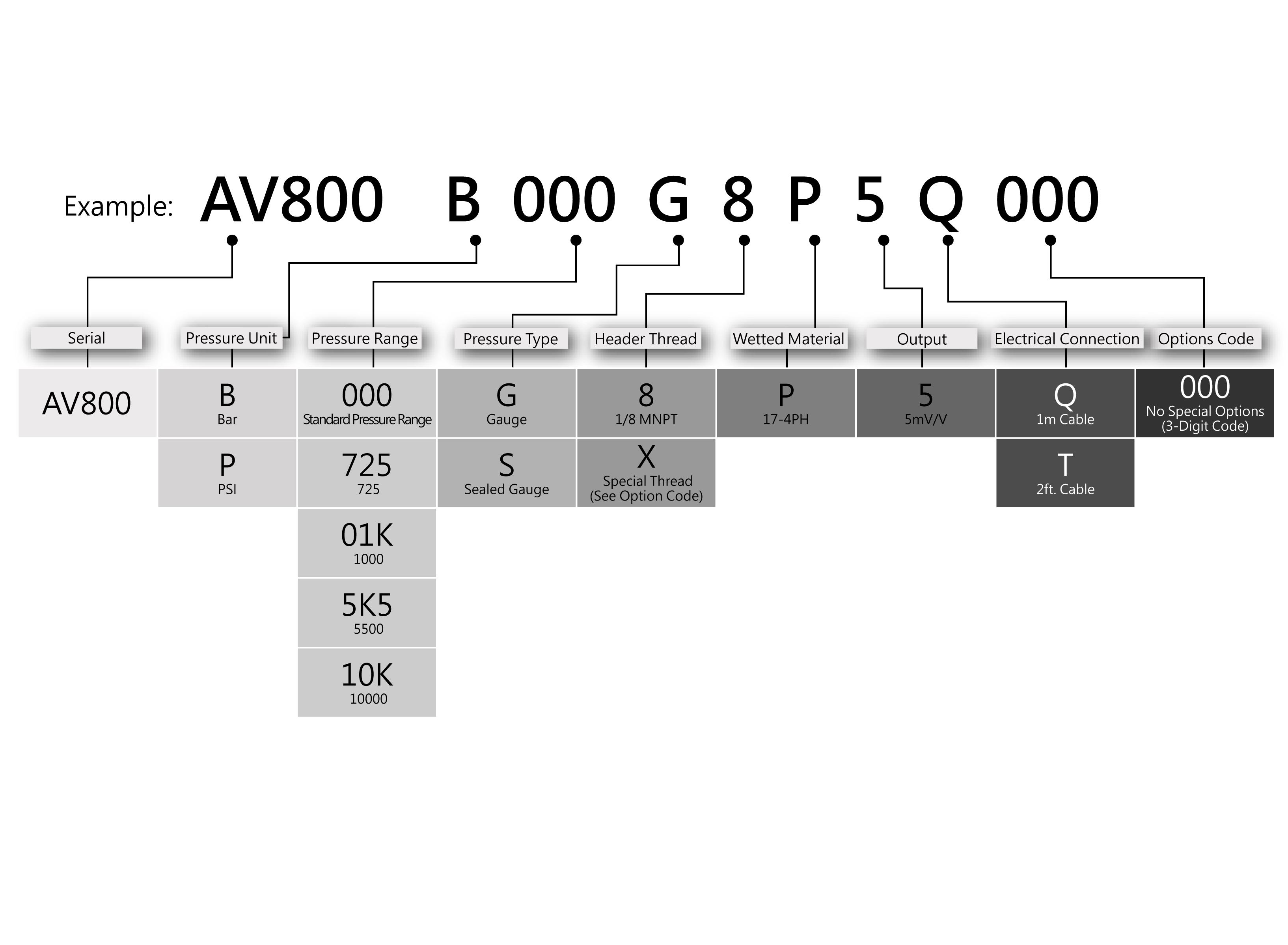

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV800B000G8P5Q000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
