Performance @ 25℃ (77℉)

Accuracy*	<±0.5% BFSL, typ.
Stability(1 year)	<±0.25% FS, typ.
Over range Protection	2X rated Pressure (4X optional)
Burst Pressure	5X or 15,000psi(whichever is less)
Pressure Cycles	>100 Million
Output	4-20mA	10mV/V**
Excitation	10-28VDC	10V excitation as max.
Zero Offset	<±1% of FS	<±2% of FS
Span Tolerance	<±1% of FS	<±2% of FS
* Accuracy includes: Non-linearity, Hysteresis and Non-repeatability
** 10VDC, Maximun

Environmental Data

Temperature
Media	-40 to 125℃ (-40 to 257℉)
Operating	-20 to 125℃ (-4 to 257℉)
Storage	-40 to 125℃ (-40 to 257℉)
Thermal Limits
Compensated Range	-20 to 85℃ (-4 to 185℉)
TC Zero	<±1% of FS
TC Span	<±1% of FS
Other
Shock	50G, 11 msec, 1/2 sine
Vibration	±20g, MIL-STD-810C, Procedure 514.2-2, Curve L
EMI/RFI Protection	Yes
Rating	IP66 (Standard)

Physical Description

Wetted Material	17-4PH, 316L, Inconel 718 (Optional)
Electrical Connection	M12x1-4P, Solder Pins

MODEL NUMBER CONFIGURATION

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements. Contact AVERY INSTRUMENT LTD. for configurations not shown.

Ordering Method
For Example:-

AV40FMB050S9P9Y000

ORDERING INFORMATION

Click the button➠ and find the AVERY Model number

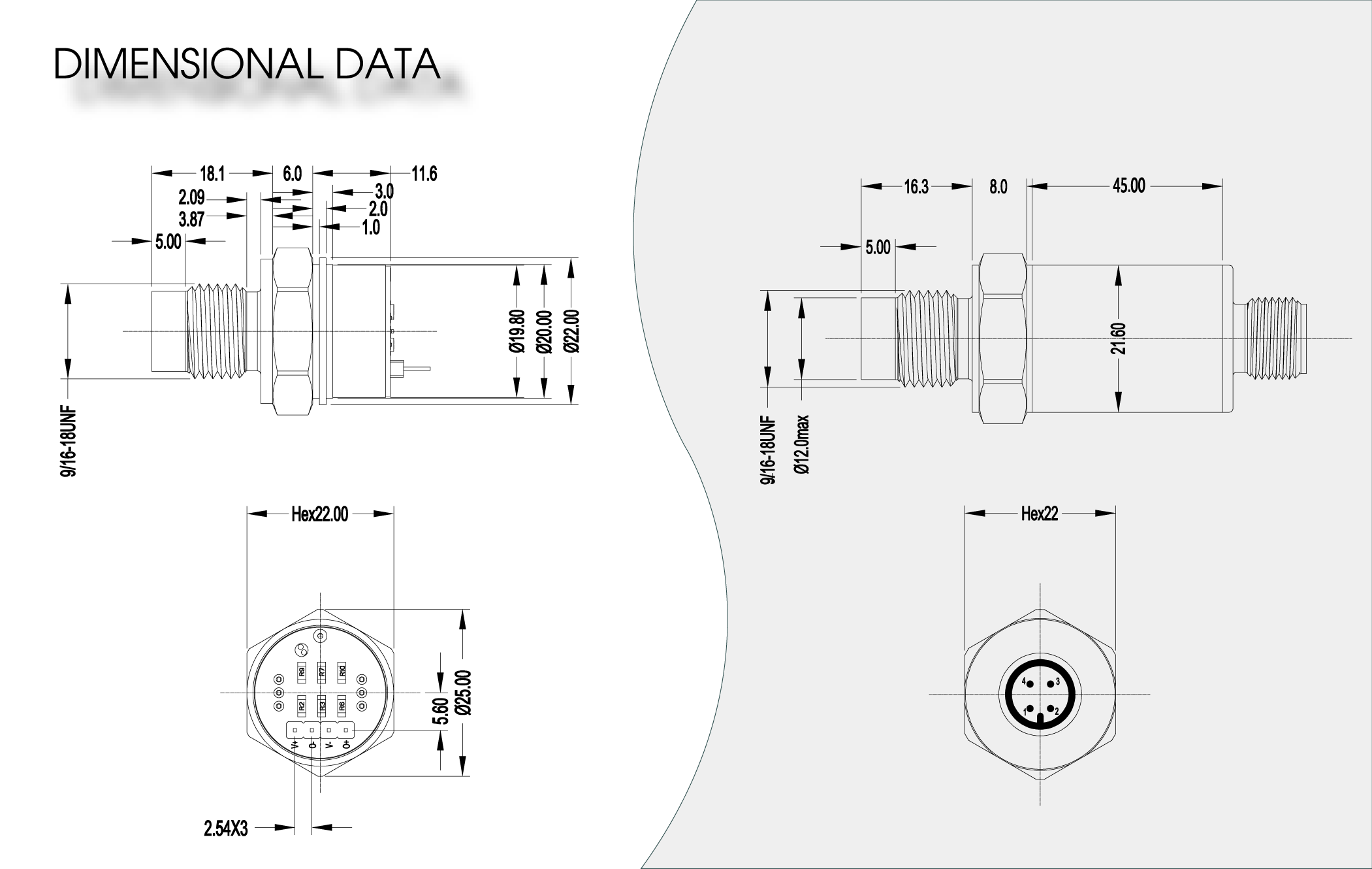

DIMENSIONAL DATA

DOWNLOAD DATASHEET

Warranty

🔮 Workmanship - Avery Instrument Limited (AVERY) pressure sensors have a limited one-year warranty to the original purchaser. AVERY will replace or repair, free of charge, any defective sensor. This warranty does not apply to any units that have been modified; misused, neglected or installed where the application exceeds published ratings; the label getting lost, broken,or unrecognizable when return.
Installation/Applications - The purchaser is responsible for media compatibility, functional adequacy, and correct installation of the sensor.
